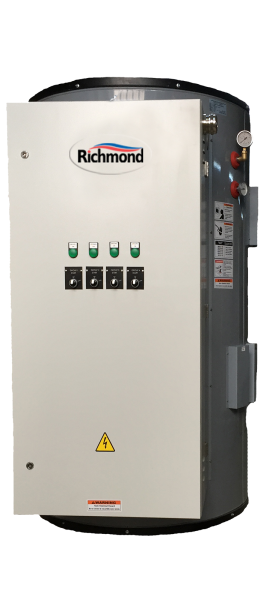

RM-EVS/R-SS Series - Richmond Water Heaters

Stainless steel 316 tank (AISI 304L quality) Standard is 304, 316 is an optional feature
UL 1453 listed, ASME Compliant
IP 44 rated electrical control cabinet with full length hinged doors with key lock
Incoloy 825 heating elements
Electrostatic powder Paint coated galvanized steel outer jacket
Immersed type regulating thermostat
Manual reset high limit thermostat
Electrical control cabinet with full length hinged doors with key lock
Magnetic Contractors
All models are equipped with UL listed terminal blocks for simplicity of installation
Factory installed ASME temperature and pressure relief valve
180° F (82° C) temperature operation
Operating Pressure: 125-150 PSI optional
Heater steps on/off switches with pilot lamps
Factory installed temperature gauge
Factory installed pressure gauge
Magnesium Anode rods to ensure long life and corrosion resistance
Electrostatic powder paint coated galvanized steel control cabinet with special polyurethane gasket
Special wrench for heating elements is provided
Factory installed full-flow, brass drain valve for faster draining
Hand-hole sediment cleanout (500 Litre and Larger models)
ASME construction in accordance with the requirements of ASME Boiler and Pressure Vessel Code Section IV Part HLW
Horizontal and vertical orientation

Specifications

Certifications

Documents

RM-EVS/R-SS Series
