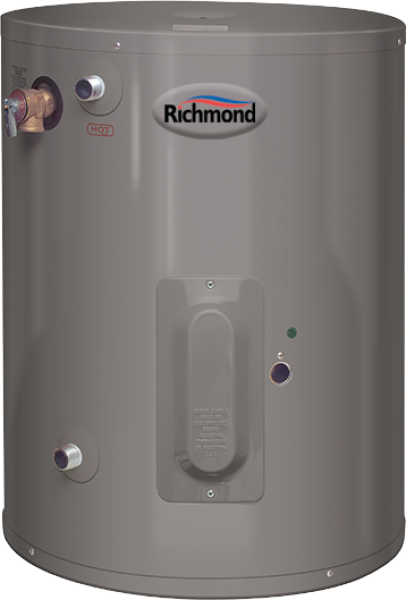

RM85VP Series Point-of-use Water Heaters

  • Maximum tank working pressure of 150 PSI (10 BARS)
  • Factory tested @ 300 PSI
  • RichmondExclusive Magnesium anode rod provides long-lasting tank protection
  • These units are UL listed and comply with Underwriter’s  Laboratories Specifications 174 and IEC 60335-2-21 (Meets the compliance requirements of GSO harmonized standards for safety and EMC)
  • Over-temperature protector cuts off power in excess temperature situations
  • Automatic thermostat keeps water at desired temperature
  • Wall mount kits available for easy installation
  •  Exclusive tank lining resists corrosion
  • ASME rated temperature and pressure relief valve
  • R-Foam Cyclopentane insulation for superior heat retention
  •  LWD High efficiency INCOLOY 840 or 800 heating element to withstand various aggressive water conditions .

Specifications

  • 6, 10, 15, 20 & 30 -Gallon Capacities
  • 220, 230 & 240 Volt AC/Single Phase 50 Hz / 60 Hz
  • 2-Wire Single Phase Electric.
  • 85VP6 - 1.5 & 2.0 KW
  • 85VP10 - 1.5 & 2.0 KW
  • 85VP15 - 1.5, 2.0, 3.0 & 4.5 KW
  • 85VP20 - 1.5, 2.0, 3.0, 3.5 & 4.5 KW
  • 85VP30 - 2.0, 3.0, 4.5 & 6.0 KW
